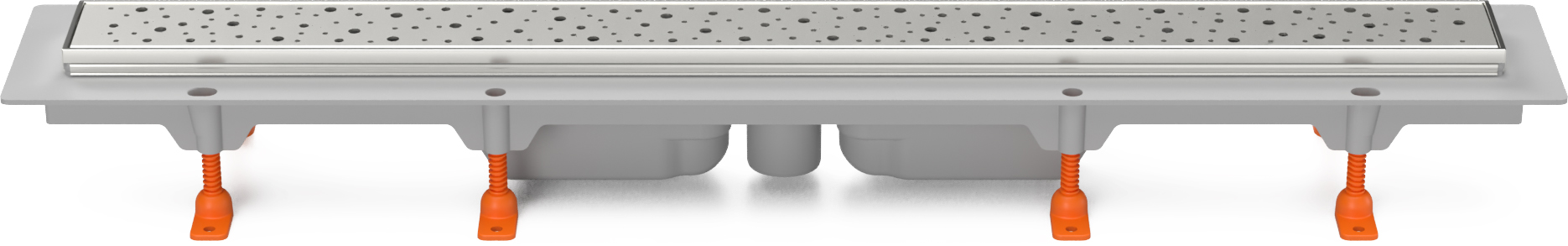

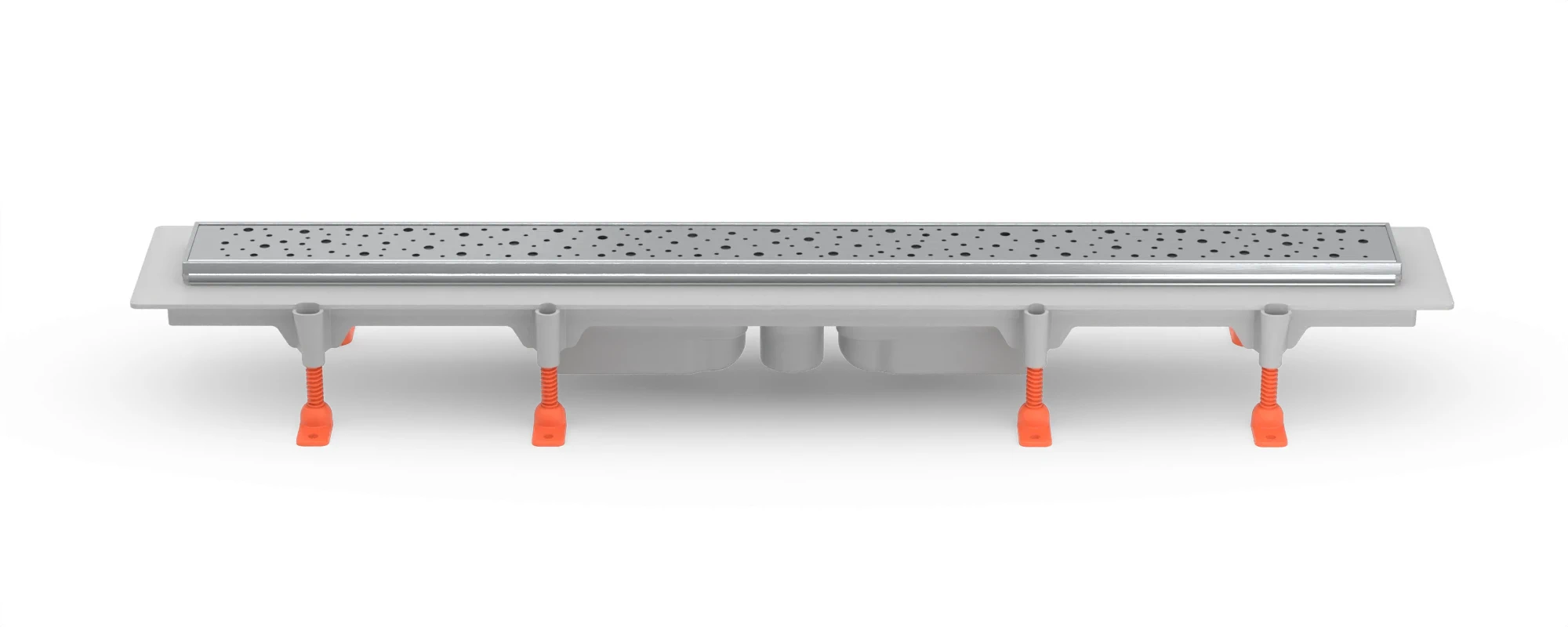

Linear. floor drain with stainless steel frame, 650 mm, bottom outlet, D 40, Drops grid matt

Quantity per palette: 100
Ord. number: CH 650/S40 DN 1

Parameters

Weight
1.96 kg
Length
650 mm
Width
63 mm
Frame height
15 mm
Grid type
DROPS mate
Material
polypropylene, stainless steel
Telescopic legs
Yes
Stainless frame
Yes
Outlet diameter
40
Outlet type
vertical
Flow rate (l/min)
60-70
Load (kg)
300
Load class
K3
Color
Gray, nerez ocel
