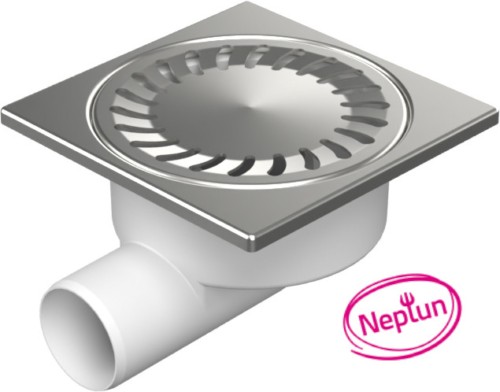

Floor drain with side outlet D50/95, NEPTUN, stainless steel flange, grid SUN
The floor drain is designed for indoor installations.
If the water level drops, the NEPTUNE float will close the outlet to prevent the back flow of odour from the sewage line.
Made of PP, PS and stainless steel DIN 1.4301.
Load capacity K3 (300 kg).
Temperature resistance up to 70°C.
Flow rate: 29 l/min
Per box: 12 pieces
Per palette: 504 pieces
Parameters
- Weight
- 0.4442 kg
- Length
- 150 mm
- Width
- 150 mm
- Grid type
- SUN
- Material
- polypropylene, polystyrene, stainless steel
- Stainless frame
- Yes
- Outlet diameter
- 50
- Outlet type
- horizontal
- Flow rate (l/min)
- 29
- Load (kg)
- 300
- Load class
- K3
- Color
- nerez ocel
