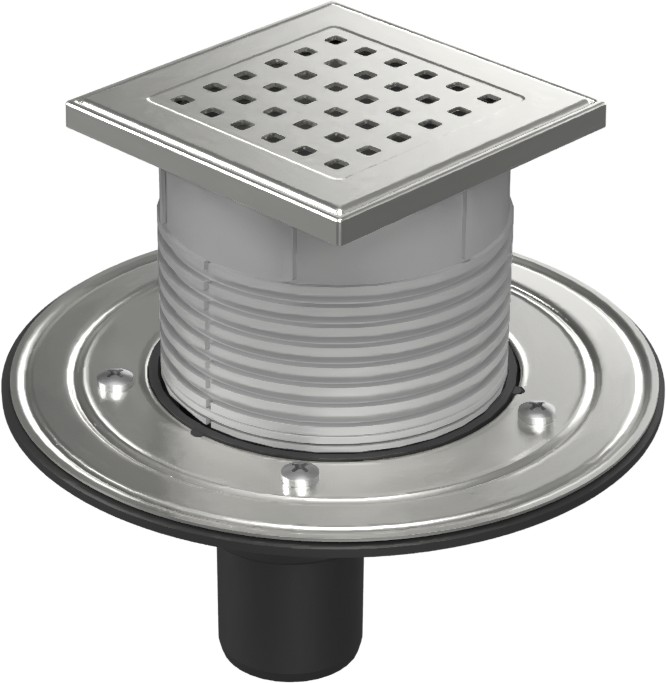

Floor drain with bottom outlet D50, stainless steel flange, frame, grid GATE

Per box: 4 pieces
Per palette: 120 pieces
Ord. number: G1 384 N B

Parameters

Weight
1.05 kg
Length
125 mm
Width
125 mm
Grid type
GATE
Material
polypropylene, polystyrene, stainless steel
Adjustable height
Yes
Outdoor use
Yes
Stainless frame
Yes
Outlet diameter
50
Outlet type
vertical
Flow rate (l/min)
42-68
Load (kg)
300
Load class
K3
