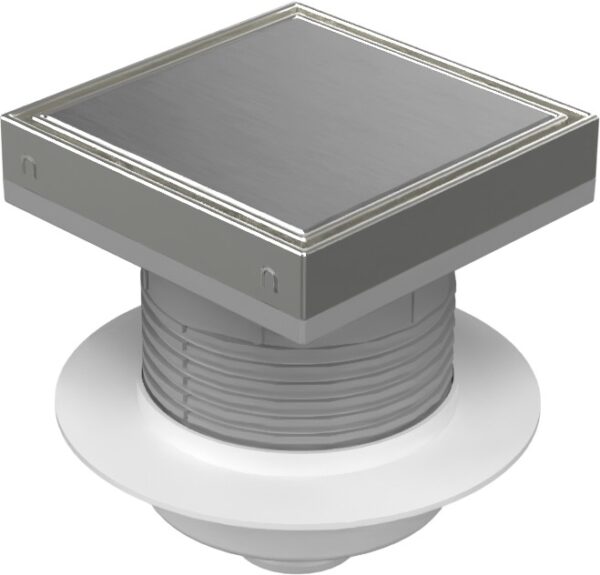

Floor drain with bottom outlet D50, NEPTUN, collar, stainless steel frame, grid STEEL
The floor drain is designed for indoor installations.
If the water level drops, the NEPTUNE float will close the outlet to prevent the back flow of odour from the sewage line.
Made of PP, PS and stainless steel DIN 1.4301.
Load capacity K3 (300 kg).
Temperature esistance up to 70°C.
Folw rate: 27 – 49 l/min
V krabici: 4 pieces
Na paletě: 168 pieces
Parametry
- Weight
- 0.91 kg
- Length
- 150 mm
- Width
- 150 mm
- Grid type
- STEEL
- Material
- polypropylene, polystyrene, stainless steel
- Adjustable height
- Yes
- Stainless frame
- Yes
- Outlet diameter
- 50
- Outlet type
- vertical
- Flow rate (l/min)
- 27-49
- Load (kg)
- 300
- Load class
- K3
- Color
- nerez ocel
- Height
- 60-110 mm
