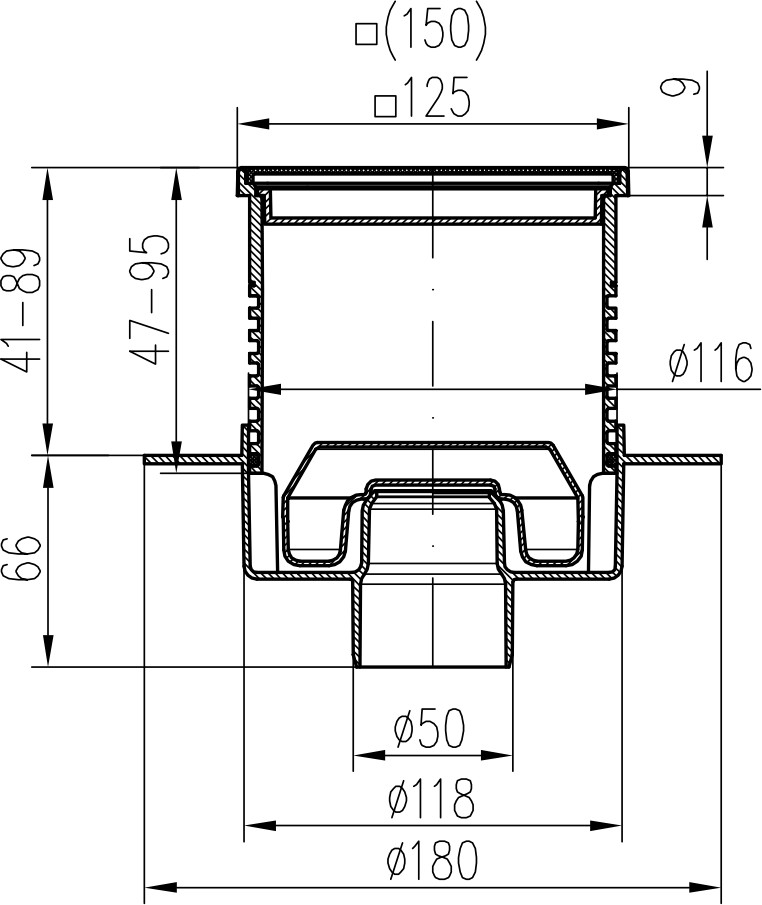

Floor drain with bottom outlet D50, NEPTUN, collar, stainless steel frame, grid GATE
The floor drain is designed for indoor installations.
If the water level drops, the NEPTUNE float will close the outlet to prevent the back flow of odour from the sewage line.
Made of PP, PS and stainless steel DIN 1.4301.
Load capacity K3 (300 kg).
Temperature esistance up to 70°C.
Folw rate: 27 – 49 l/min
V krabici: 8 pieces
Na paletě: 192 pieces
Parametry
- Weight
- 0.62 kg
- Length
- 125 mm
- Width
- 125 mm
- Height
- 35-91 mm
- Grid type
- GATE
- Material
- polypropylene, polystyrene, stainless steel
- Adjustable height
- Yes
- Stainless frame
- Yes
- Outlet diameter
- 50
- Outlet type
- vertical
- Flow rate (l/min)
- 27-49
- Load (kg)
- 300
- Load class
- K3
- Color
- nerez ocel
