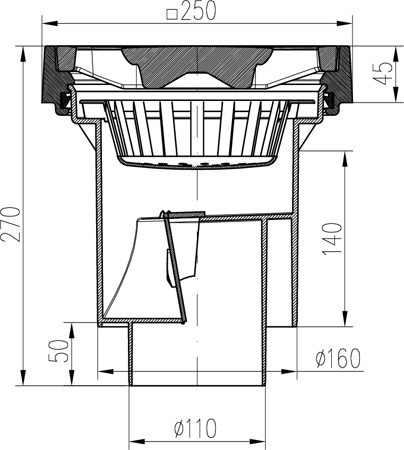

Bottom street drain, outlet D160/D110-250 dry flap, cast iron frame, grid SUN
Made of PP and PS, UV stabilized, and from grey cast iron DIN 1691. Load capacity compliant to EN 124-B 125 (12,500 kg) and a plastic grid made from polypropylene compliant to EN 1253 L15 (1,500 kg). Temperature resistance up to 90°C. Bottom street drain with odour trap.
Flow rate (dry flap = odour trap) ? 250 l/min
Parameters
- Weight
- 6.89 kg
- Length
- 250 mm
- Width
- 250 mm
- Material
- cast iron, polypropylene, polystyrene
- Outdoor use
- Yes
- Outlet diameter
- 110, 160
- Outlet type
- vertical
- Flow rate (l/min)
- 250
- Load (kg)
- 12500
- Load class
- M125
- Color
- Black
- Grid type
- Litina
