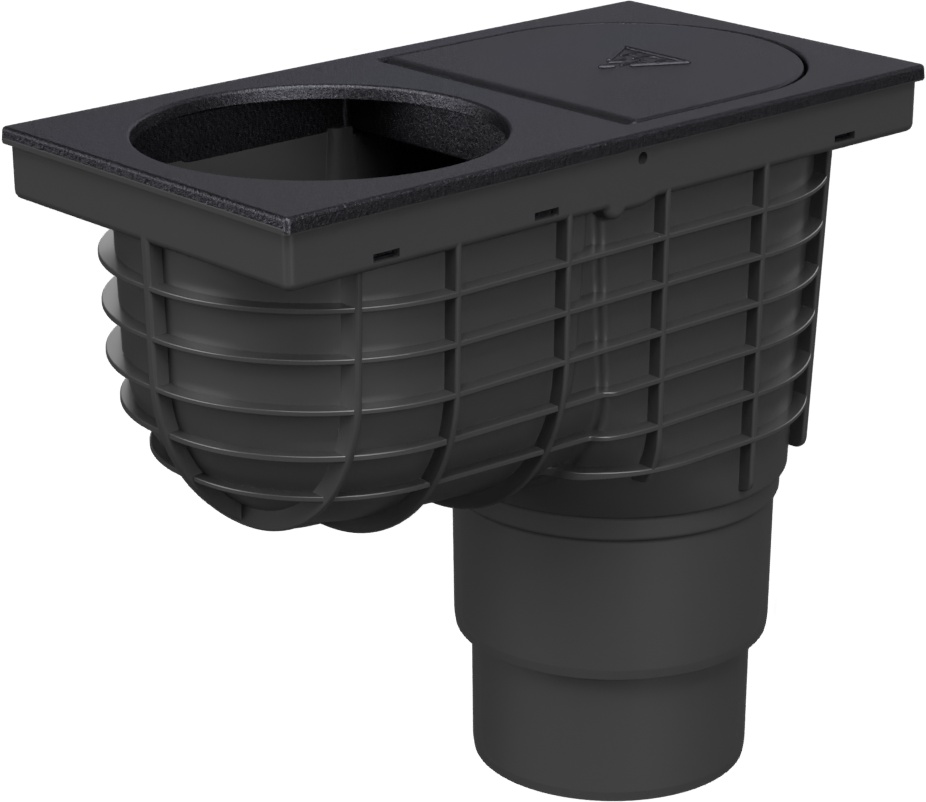

Bottom street drain, outlet D110/125, cast iron, for the inlet D125

Per box: 4 pieces
Per palette: 96 pieces
Ord. number: 325 C Li/125

Parameters

Weight
2.91 kg
Waste connection diameter
125 mm
Length
305 mm
Width
155 mm
Height
275 mm
Material
cast iron, polypropylene, polystyrene
Outdoor use
Yes
Outlet diameter
110, 125
Outlet type
vertical
Flow rate (l/min)
390/530
Load (kg)
1500
Load class
L15
